Built on an award-winnning chassis for 'Best Family Vehicle, the Chrysler Pacifica with a wheelchair accessible conversion from BraunAbility comes with all the style you expect from Chrysler with the performance and safety you demand from BraunAbility. With three options to choose from, you can pick the BraunAbility Pacifica that’s the perfect fit for your family.

Aero Mobility is committed to making the vehicle buying experience as informative and comfortable as possible. Our mobility specialists are certifiably trained in all aspects of the Chrysler Pacifica accessible van.

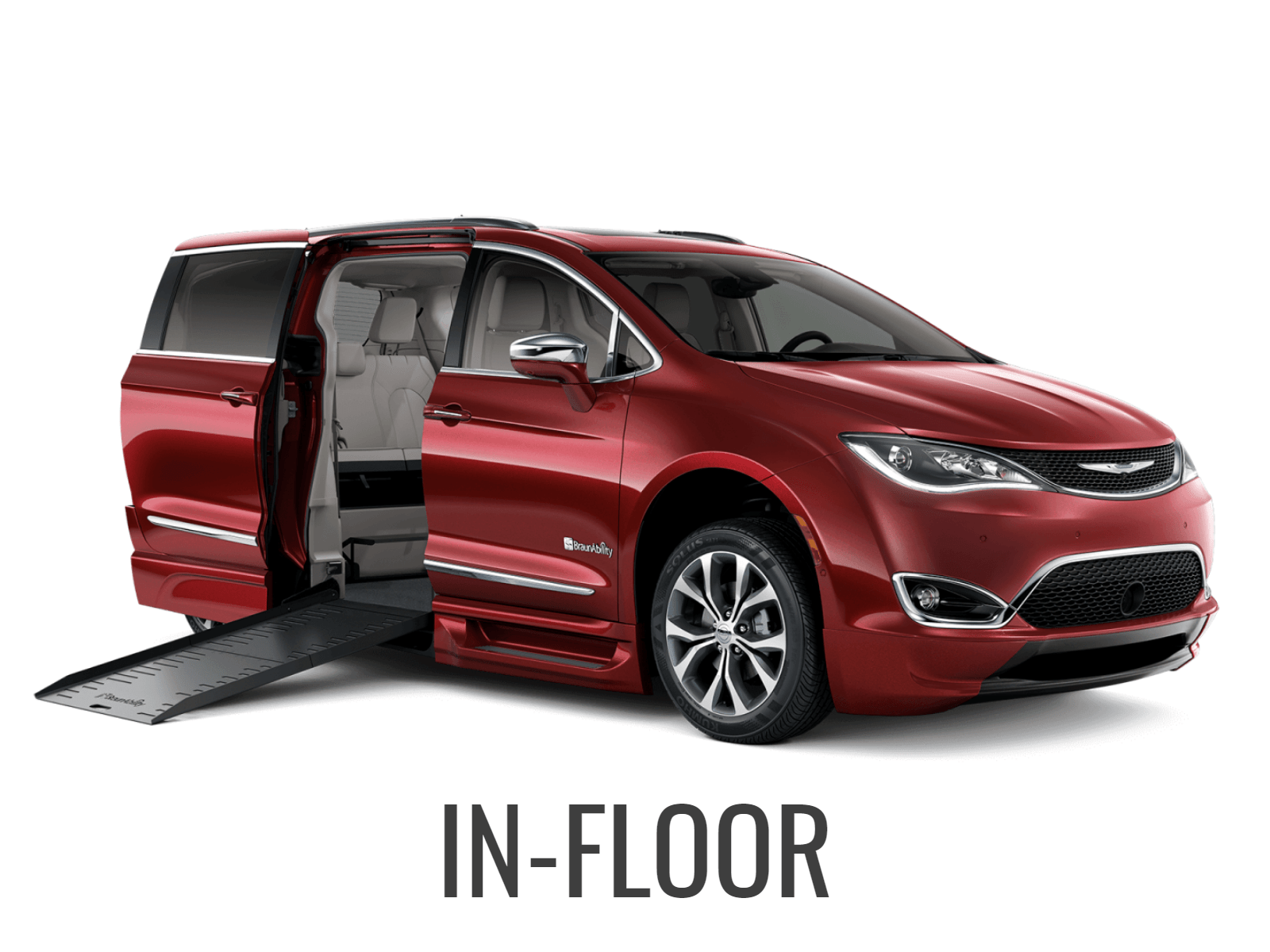

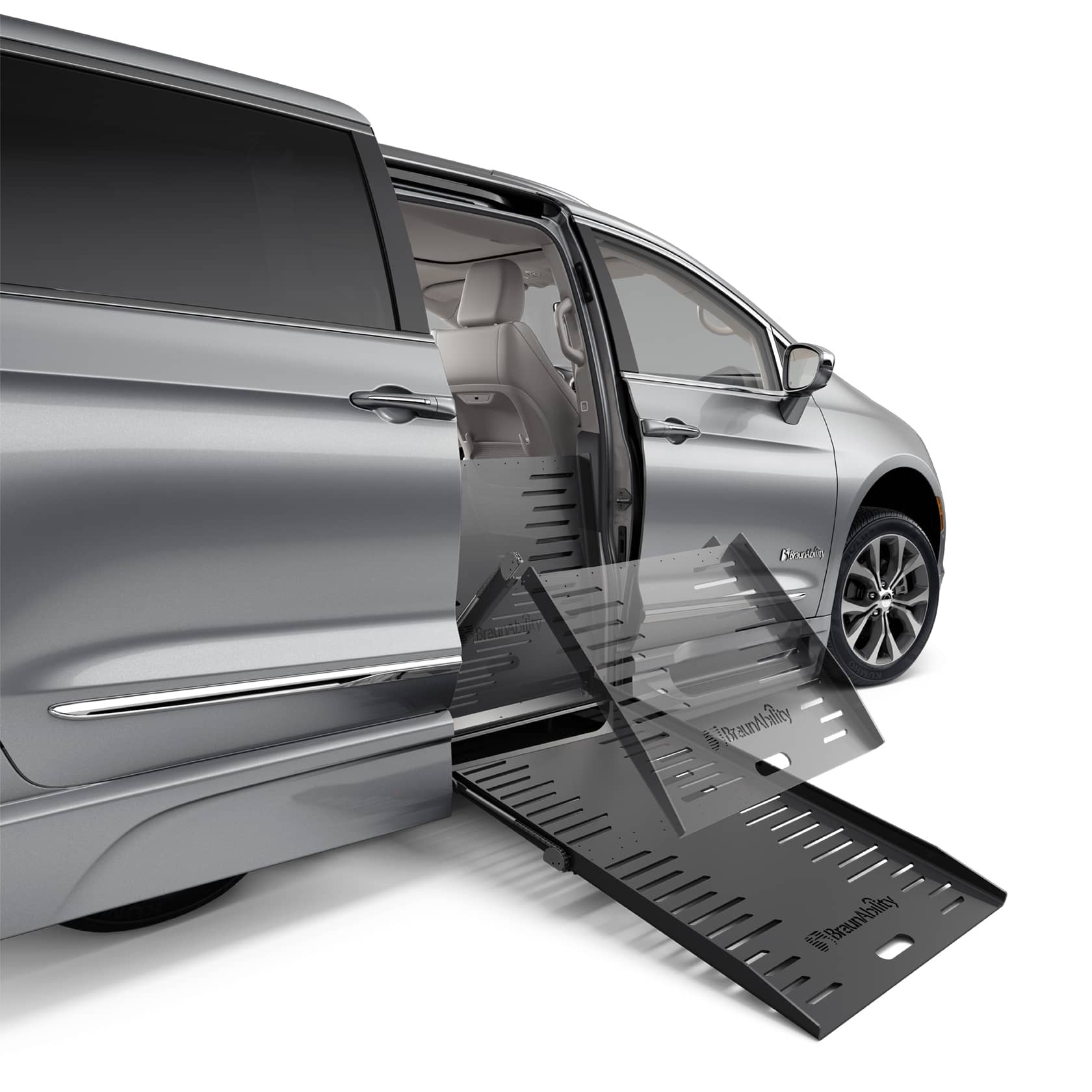

Power In-floor Ramp Dimensions

• Door Opening Usable Width: 33.5"
• Door Opening Usable Height (at Middle of Door): 55”
• Interior Height at Center of Van: 58”
• Interior Height at Driver/Passenger Position- 58”
• Ramp Length: 51.25”
• Ramp Width: 32.25”
• Ramp Angle: 9.9°
• Interior Floor Length: 71”
• Overall Interior Floor Length: 98.5”
• Interior Width at Slide Doors (Door Closed): 68”
• Interior Width at B Pillars: 59.75”

Manual Rear Ramp Dimensions

• Lowered Floor Length: 98”
• Lowered Floor Width: 34.5”
• Distance Between Seats: 25.5”
• Ramp Width: 34”
• Ramp Length (Manual Foldout): 60”
• Ramp Angle: 10°
• 2nd Row Wheelchair Location Interior Height: 56”
• Entrance Height: 56”
• Overall Height: 75”

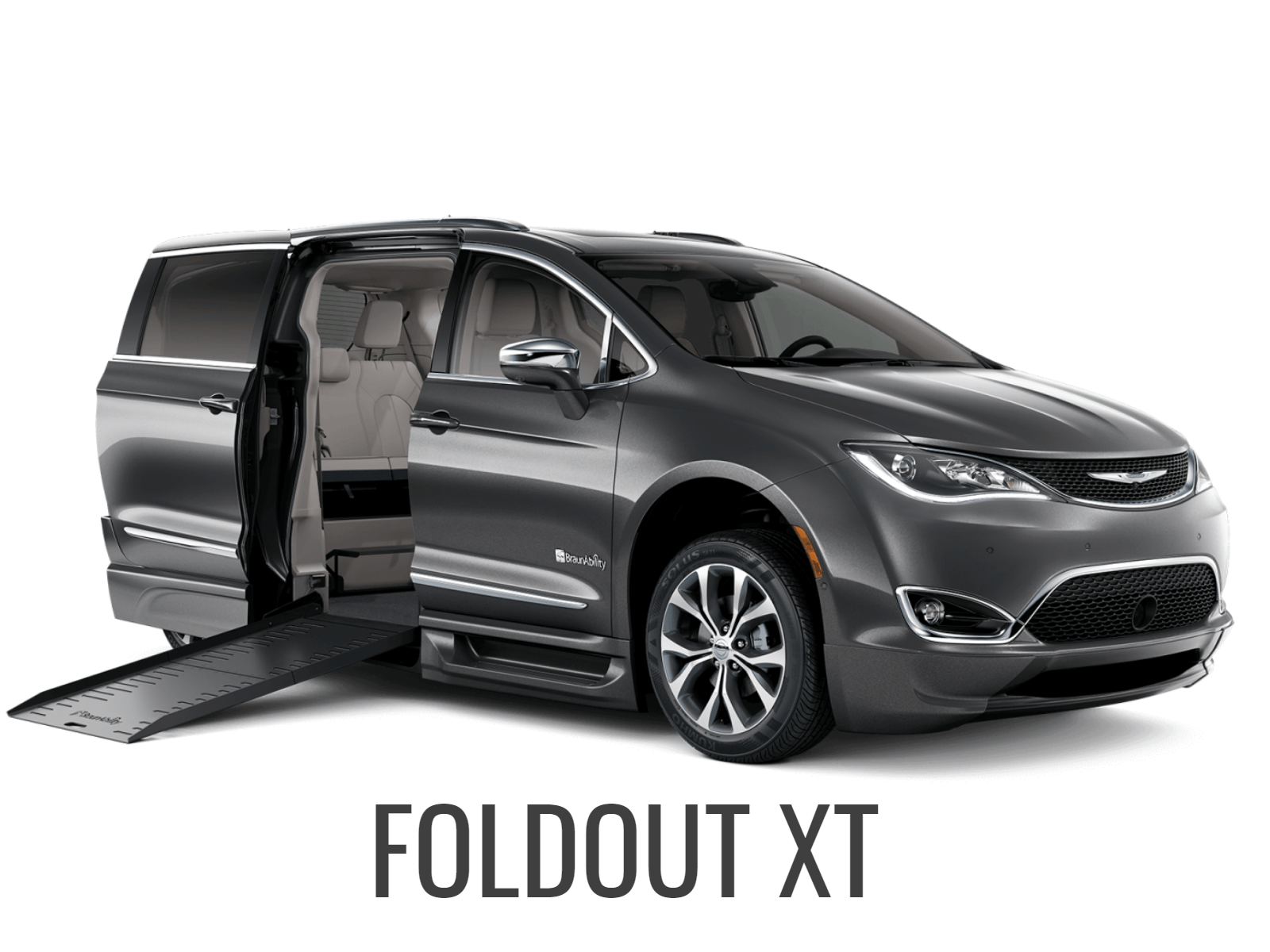

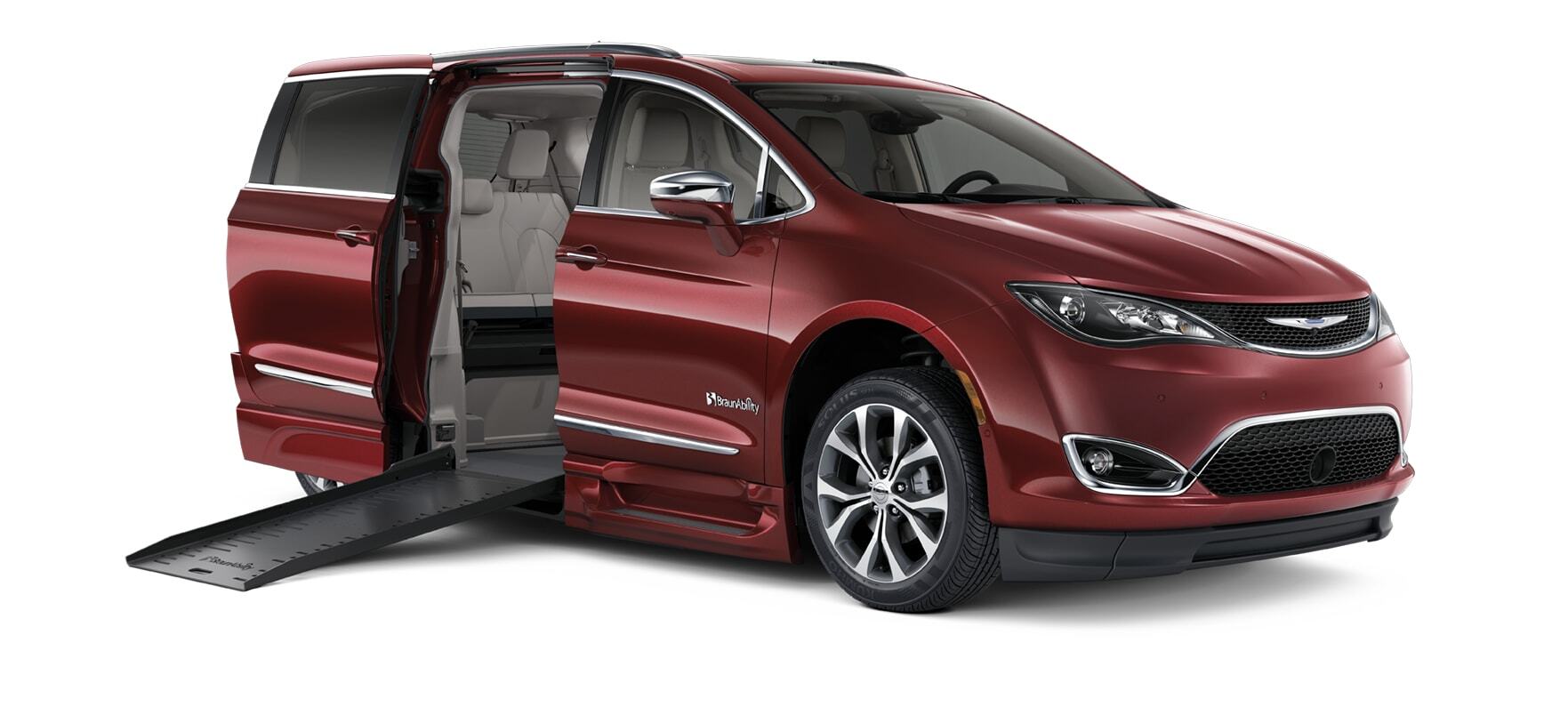

Power Foldout & XL Ramp Dimensions

• Door Opening Usable Width: 32.375”
• Door Opening Usable Height (at Middle of Door) : 53” (57” XT)
• Interior Height at Center of Van: 56” (60” XT)
• Interior Height at Driver/Passenger Position: 56” (60” XT)
• Ramp Length: 52”
• Ramp Width: 30.125”
• Ramp Angle 9.1° (8.6° XT)
• Interior Floor Length: 71”
• Overall Interior Floor Length: 98.5”
• Interior Width at Slide Doors: 64”
• Interior Width at B Pillars: 62.25”

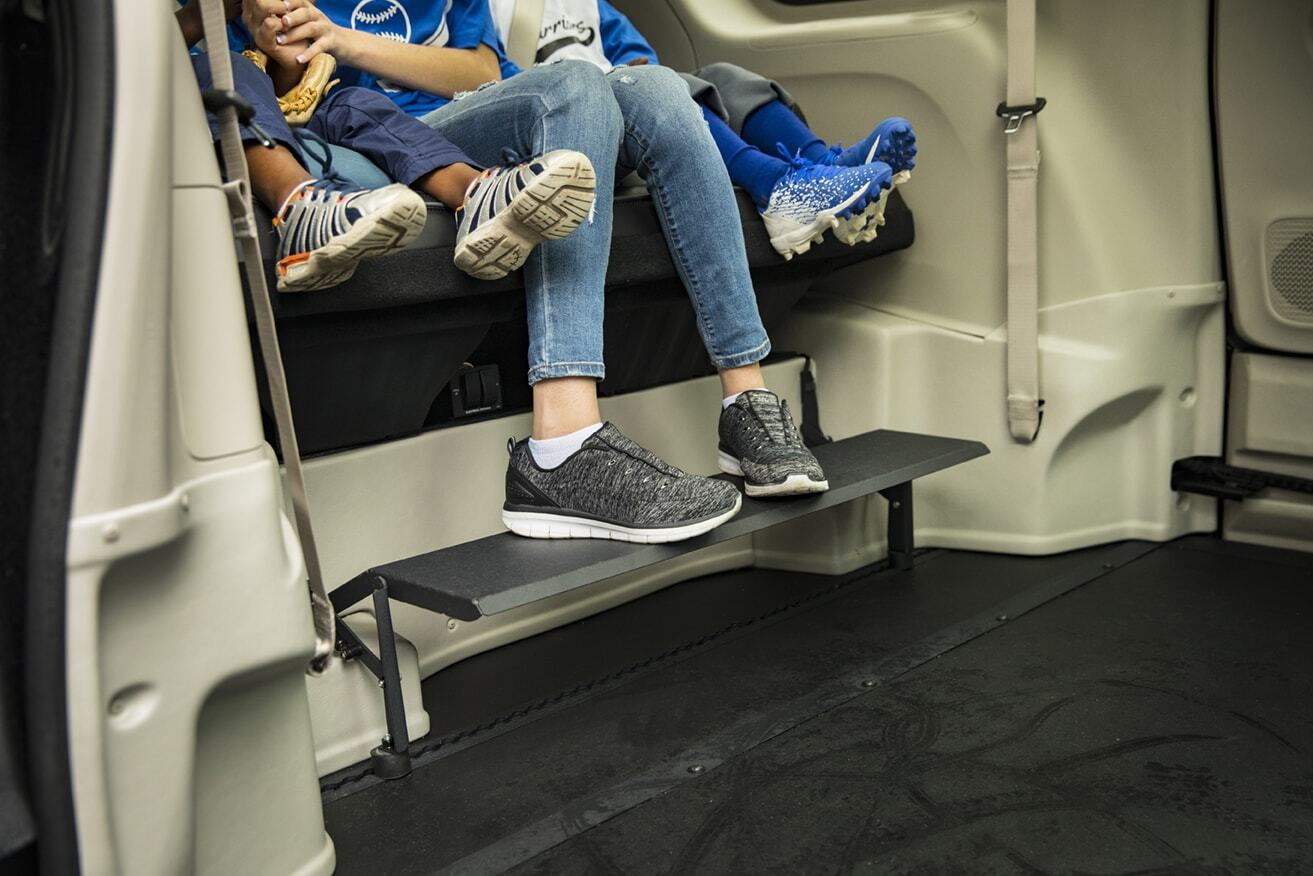

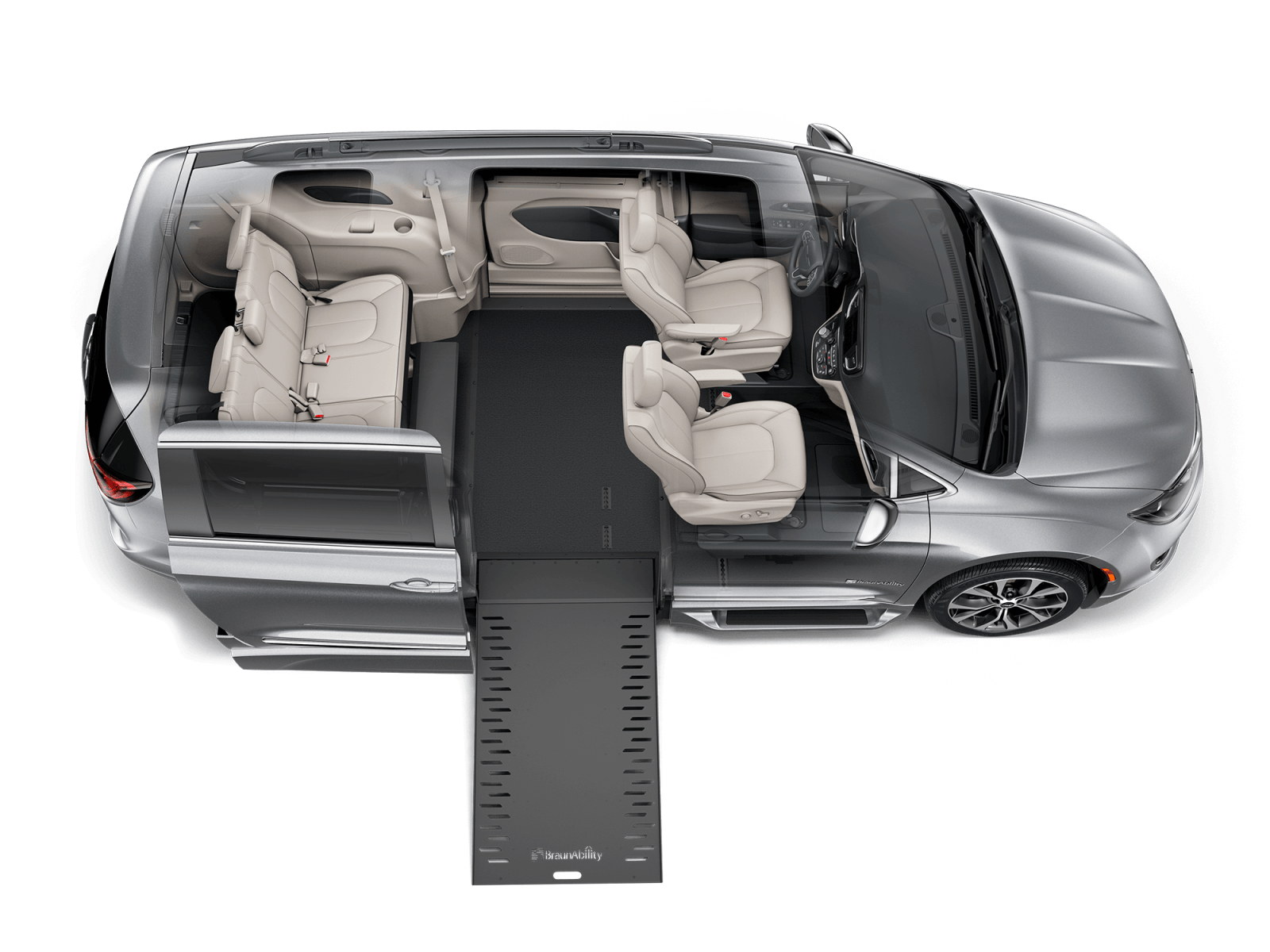

All Seats In. Rear Footrest Down.

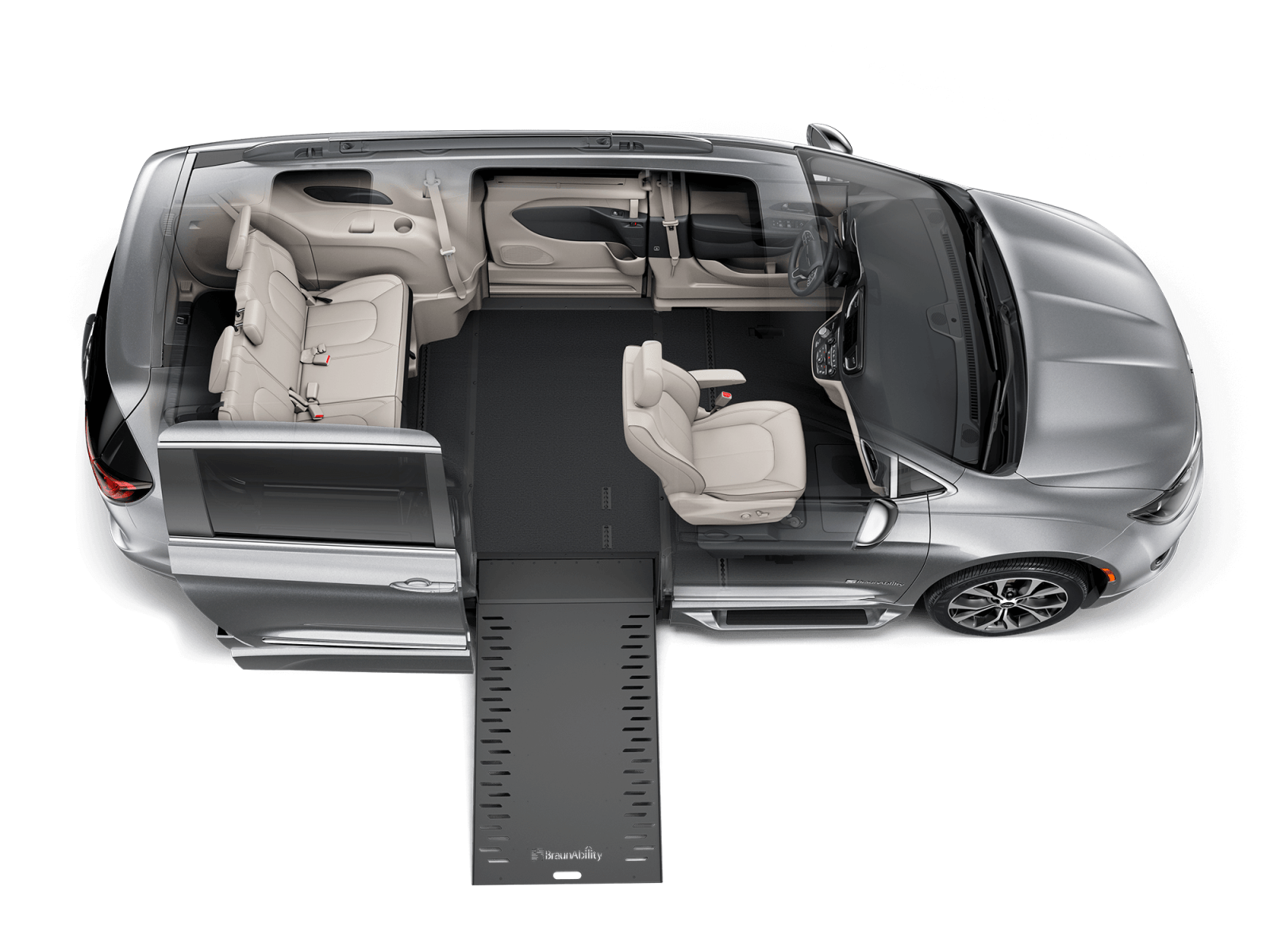

Front Passenger Seat Removed.

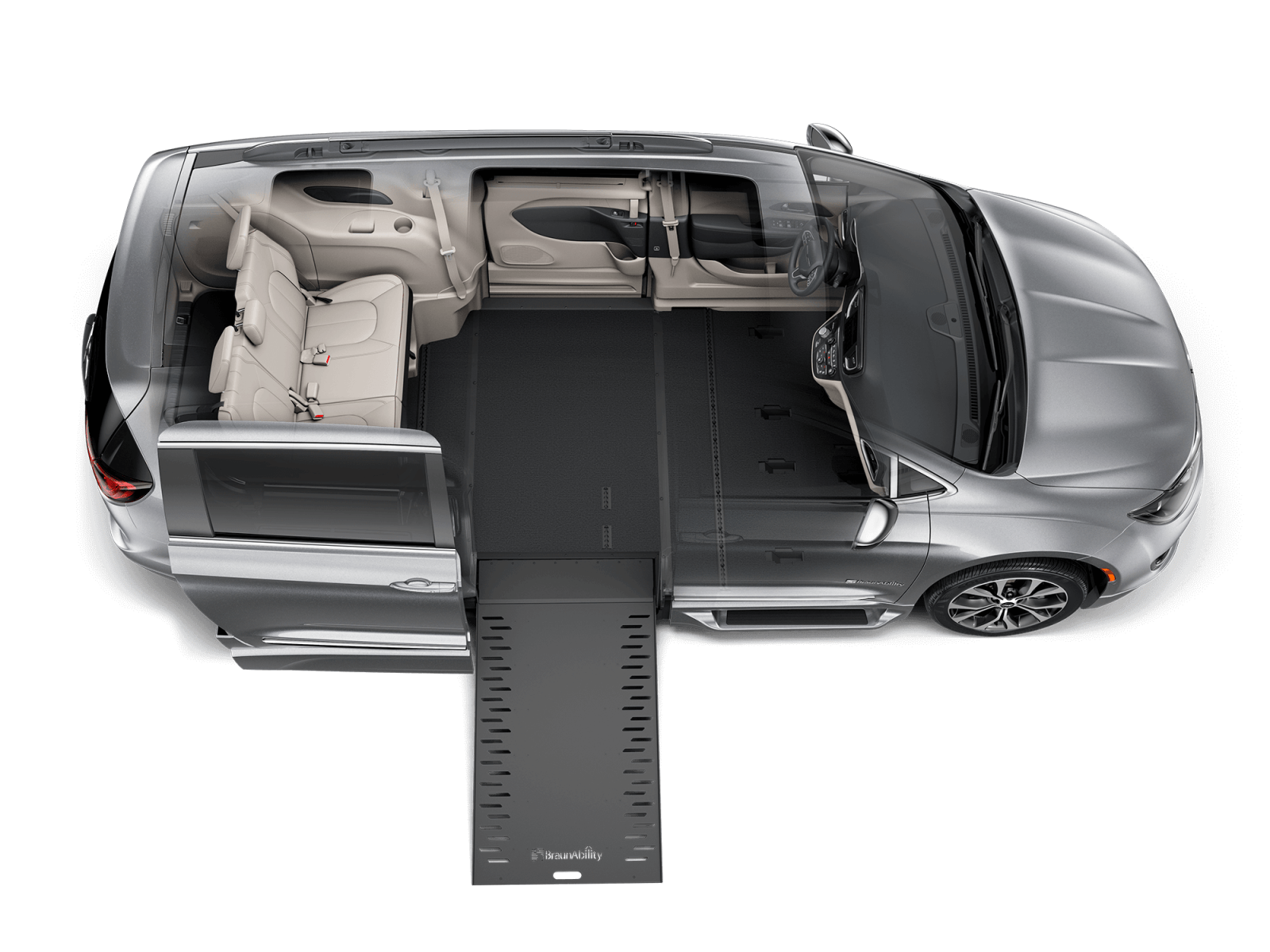

Both Front Seats Removed

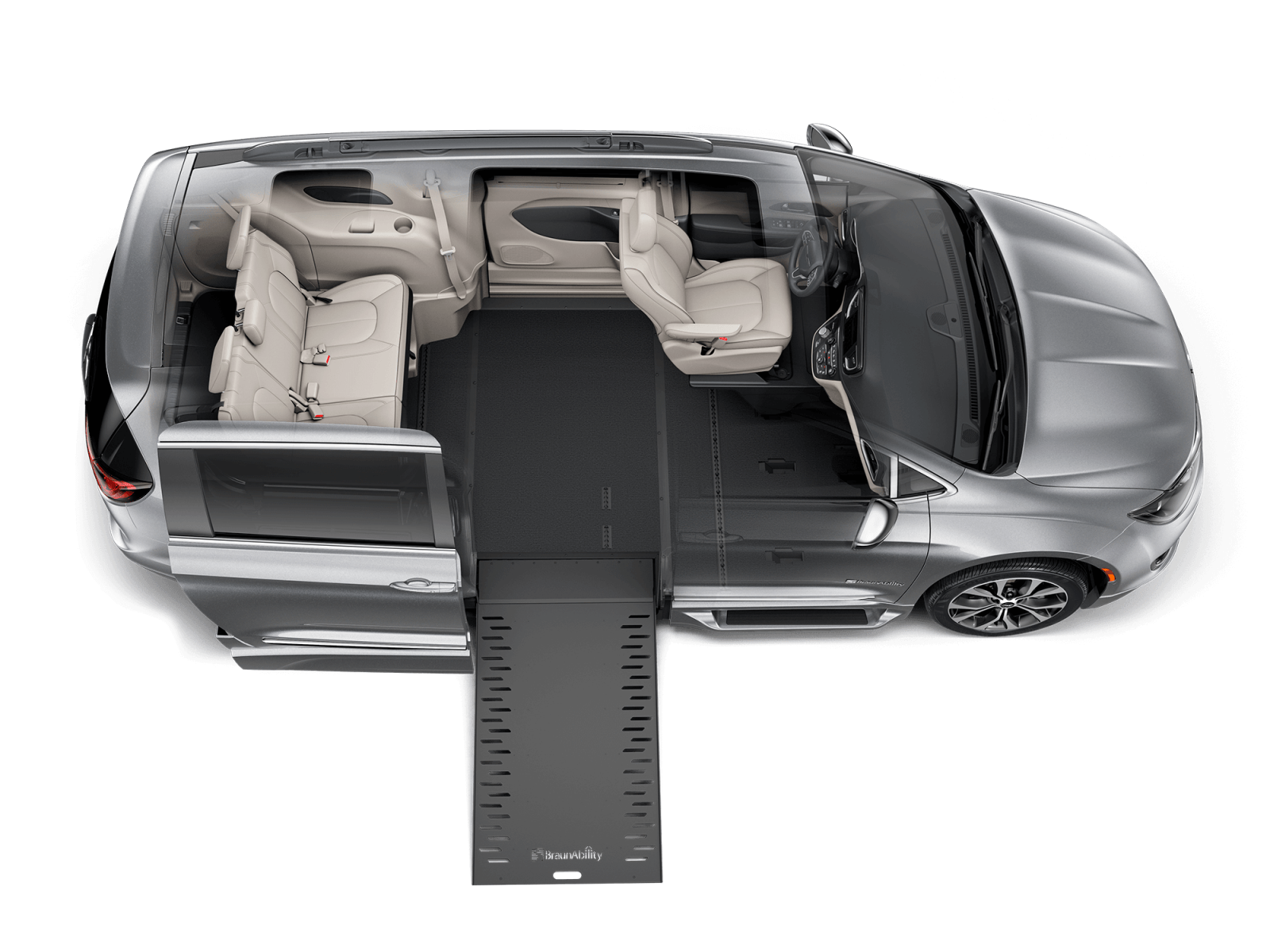

Front Driver Seat Removed
